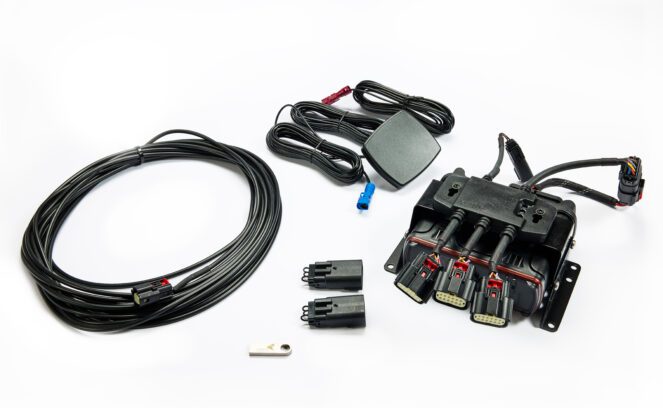

SENSE-3 is a scalable data monitoring & analysis solution giving you access to both live and historic data using any online M2M/IoT monitoring system, such as Tan Delta Online. Consisting of an IoT Gateway, mounted with Tan Delta’s modular Gateway Hub system to form 1 single small footprint unit, the SENSE-3 Gateway Kit allows up to 3x OQSx-G2 sensors to be connected out of the box, with option to upgrade the system to 16x sensors by connecting multiple Gateway Hubs (sold separately) to the SENSE-3 unit, therefore catering for large multi-asset systems where timing of maintenance intervals is crucial.
SENSE-3 enables data transmission using a variety of methods depending upon location and network availability. These include Cellular, WiFi and Ethernet.
-
SYSTEM INTEGRATION –
Supports up to 3 sensors out of the box, and up to 16 by purchasing modular upgrades. Sensor Cables (Cable SH, sold separately) come in a variety of lengths to ensure easy installation, integration and operation. -
CONNECTIVITY TO TD-ONLINE –
A data hub and dashboard view of monitored assets and alerts you to developing issues prior to any equipment damage or lost production. The interface is similar across desktop/tablet/smartphone views for ease of use. -
SIMPLE TO DEPLOY –
Allowing quick and simple installation on any piece of equipment, whether brand new or being installed as part of a retrofit. -
INDUSTRIAL QUALITY –
IP67 rated, suitable for installation in any harsh commercial or industrial environment. - INDEPENDENTLY TESTED
-
MONITOR ALL SITE ASSETS –
The modular gateway system allows you to view the health status and location of your entire fleet of assets at the click of a button. -
REDUCE BREAKDOWNS AND DAMAGE –
Improve efficiency and extend the life of your equipment by ensuring optimal oil condition and reliable early detection of potential issues before wear particles are present and damage occurs. -
EXTEND OIL DRAIN INTERVALS –
Safely extend oil life and drain intervals by monitoring real-time degradation and conduct maintenance when there is actual need, rather than on an ‘hours run’ basis.
Oil Interpreting Guide
Tan Delta technology continuously analyses oil in real time at a molecular level, accurately tracking condition changes as equipment operation causes oil to wear. Rate of change projection enables reliable optimal maintenance forecasting and safe interval increases – thus reduced costs. Contamination or equipment issues cause trend spikes which are instantly detected, enabling immediate evaluation and action as necessary to avoid unnecessary break downs and life-shortening equipment wear.
Product Specifications
| Name | Product Number |
|---|---|
| SENSE-3 Gateway Kit | SENSE-3 |
Physical
| Enclosure | Dimensions | Weight |
|---|---|---|
| Glass reinforced plastic | 149mm x 135mm x 58mm (L x H x W) | 400g |
CONNECTIONS
| Antenna Connector | System Connector | Other |
|---|---|---|
| FAKRA antenna | TE 776163-1 (35 pins) | MicroSD card slot |
| Micro SIM slot | ||
| USB host 2.0 | ||
| Wifi 2.4GHz | ||
| Ethernet 10/100 BaseT |
GSM & GPRS
| GSM | GPRS |
|---|---|
| GSM850 + EGSM900 + GSM1800 + GSM1900 | GPRS Class B, Class 10 (4+2) |
| Class 4 (2W) GSM850/EGSM900 | Audio and CSD Data calls |
| Class 1 (1W) GSM1800/GSM1900 | SMS (MT/MO) |
| Optional HSPA+ (3G) and LTE (4G) support |
GNSS Positioning
| Receiver | SBAS | Accuracy | Signal Acquisition |
|---|---|---|---|
| GPS L1 frequency | WAAS, EGNOS, MSAS, GAGAN | 2.5 meters CEP | Cold Start: 29 sec* Warm Start: 28 sec* |
| C/A code 56 channels continuous tracker receiver | Hot start < 1 sec | ||
| GALILEO L1 openservice and GLONASS ready | Reacquisition < 1 secActive Antenna |
Power
| Supply | Batteries |
|---|---|
| 9V to 48V | |
| Standard backup battery for RTC. | |
| Duration 10 years. | |
| Optional rechargeable Battery Li-Ion 3.7V at least 2600mAh. | |
| Inserted via rear battery cover. |
System Specificatins & CPU
| ATM Cortex A8 | LINUX OS | RAM | NAND Flash | Additional Storage |
|---|---|---|---|---|
| 800MHz clock speed | Kernel 4.4 | 512MByte DDR3 | 1 GByte | 32GB+ with MicroSD card |
Environmental
| Storage Temperature | Operating GSM °F | Operating GSM On | Li-On Battery |
|---|---|---|---|
| -40°C (-40°F) to +85°C (+185°F) | -40°C (-40°F) to +85°C (+185°F) | -30°C (-22°F) to +80°C (+176°F) | -20ºC to + 60ºC (-4ºF to +140ºF) (recharge 0ºC to + 45ºC, 113ºF) |
Standards & Certifications
| Conformity |
|---|
| CE Marked |
| E – Automotive Zulassung entsprechend |
| Kfz-EMV-Richtlinie |
| R & TTE |
| RoHS Compliant |
