Sense-1 Sensor Kit
Sense-1 Sensor Kit

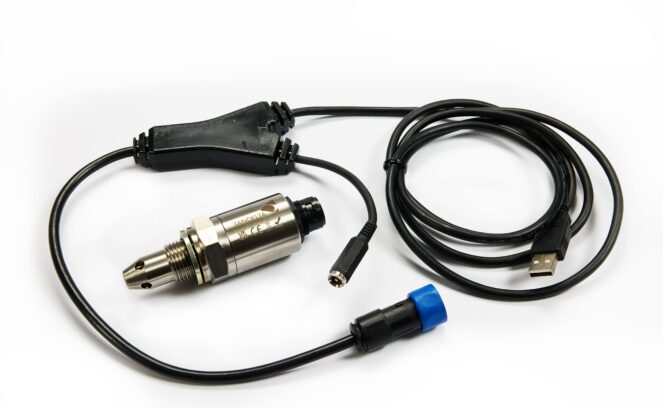

Contains the essential items to install and configure the OQSx-G2 Oil Quality Sensor, including the Configuration & Data Management Software and Config Cable.
SENSE-1 is a complete real time oil condition analysis and monitoring kit that can be easily installed on any equipment. It enables you to immediately secure the benefits of real time oil condition analysis and monitoring: reduced maintenance costs and improved reliability.
Real time oil condition (TDN), rate of change and temperature is continuously displayed providing you with an instant and accurate snapshot of the condition of your oil and equipment. Built in configurable analytics trigger alerts in the event of unexpected contamination and the rate of change enables simple prediction of oil end of life (EoL) and maintenance. All data is continuously logged and easily downloaded using the available wired or WiFi interfaces.
SENSE-1 is a plug and play solution, everything you need is included, OQSx-G2 sensor, cables, and display, to quickly and easily install on any equipment and gain the benefits of high quality continuous real time oil condition analysis and monitoring.
-
REAL TIME OIL CONDITION ANALYSIS -
Continuously analyses and tracks oil condition in real time providing a simple to understand Tan Delta Number (TDN) scale -
PREDICT MAINTENANCE -
Use the rate of change to easily and accurately predict oil end of life and safely extend intervals between maintenance according to equipment needs -
EVENT ALERTS -
Immediate detection and alert in the event of contamination and or unseen equipment issues which may lead to breakdowns or damage -
SIMPLE & RELIABLE -
Easy to install and use with any equipment operating in any environment. Operates continuously with no maintenance required -
REDUCE MAINTENANCE COSTS -
Trend analysis of oil condition change enables maintenance to be planned ahead of time at the optimal point, safely extending maintenance intervals. Typically reduces maintenance costs by between 30% and 50% -
IMPROVED RELIABILITY -
Unseen issues cause subtle changes to oil condition that OQSx-G2 detects and alerts. Enables faults to be detected and fixed before failure, reducing costly break downs and extending equipment life. -
ESG TARGETS -
Reduced oil consumption, spare part consumption, optimization of equipment operating efficiency and extended productive equipment life all make a material and verifiable contribution to ESG targets

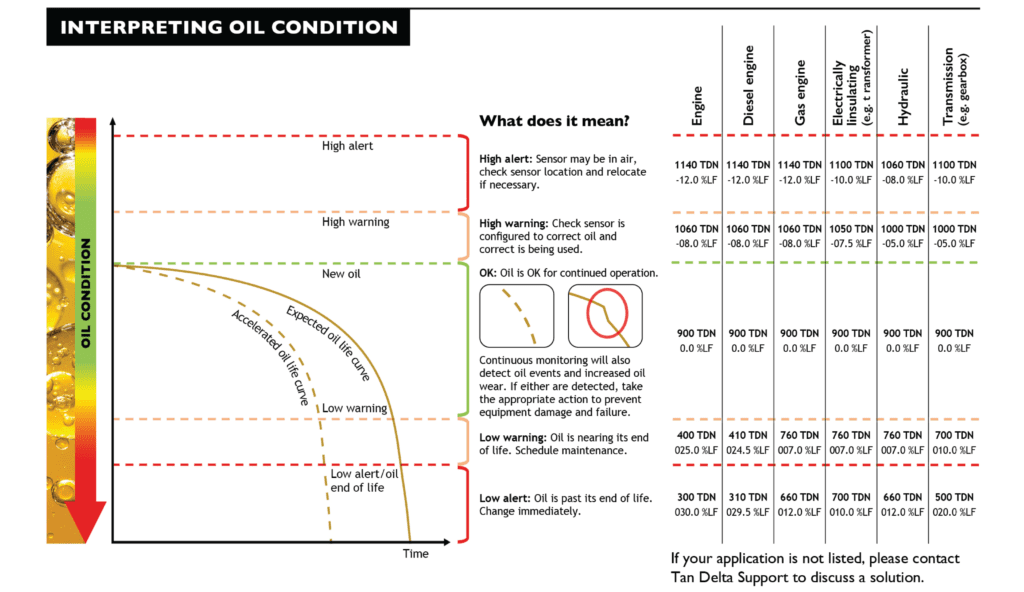

Oil Interpreting Guide
Tan Delta technology continuously analyses oil in real time at a molecular level, accurately tracking condition changes as equipment operation causes oil to wear. Rate of change projection enables reliable optimal maintenance forecasting and safe interval increases – thus reduced costs. Contamination or equipment issues cause trend spikes which are instantly detected, enabling immediate evaluation and action as necessary to avoid unnecessary break downs and life-shortening equipment wear.
Product Specifications
| Name | Product Number |
|---|---|
| Gen II – Oil Quality Sensor | OQSx-G2-1-AA-02-5 |
Connections
| Connector |
|---|
| 6 pin Bulgin 4000 series |
Physical
| Material | Dimensions | Weight | Connection | Torque |
|---|---|---|---|---|
| Stainless Steel AISI304 | 102mm x 36mm (L x W) | 180g | 32mm AF Hex Collar | 25N m |
Electrical
| Supply | Consumption |
|---|---|
| +9-30 V DC | 0.4w average, continuous 200mA |
Data Output / Input
| Digital Output | Protocols Supported | Analog Output |
|---|---|---|
| RS485, CANbus | Modbus, CanOpen and J1939 | 4-20mA |
Oil Quality Detection Parameters
| Frequency | Output | Accuracy | Elements |
|---|---|---|---|
| Every 2 seconds | Tan Delta Number (TDN) Oil Temperature (ºC or ºF) |
+/-0.5% | All wear and contamination |
Environmental
| Operating Temperature | Calibrated Temperature | Fluid Temperature | Fluid Pressure | Storage Temperature |
|---|---|---|---|---|
| -40ºC (-40ºF) to +120ºC (+248ºF) | -20ºC (-4ºF) to +120ºC (+248ºF) | -40ºC (-40ºF) to +120ºC (+248ºF) | up to 70 bar (1015 psi) | -55ºC (-67ºF) to +150ºC (+302ºF) |
Standards & Certifications
| Water & Dust | Shock & Vibration | EMC | Conformity |
|---|---|---|---|
| IP68 when connected | BS EN 60068-2-30 (Test Db – Cyc.Hum.) | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) | CE Marked |
| BS EN 60068-2-6 (Test Fc – Sine Vib.) | EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) | RoHS Compliant | |
| BS EN 60068-2-27 (Test Ea – Mech. Shock) |
