Sense-2 Display Kit

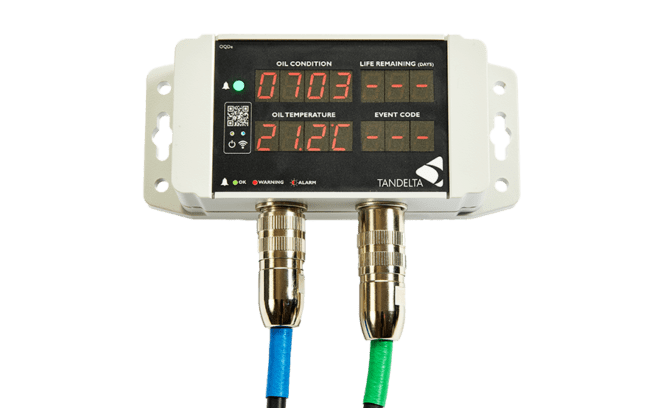

Complete plug & play oil condition monitoring kit, inclusive of Sensor, Display Express, & all necessary cables giving you everything you need for a single installation.
SENSE-2 is a complete real-time oil condition analysis and monitoring kit that can be easily installed on any equipment. It enables you to immediately secure the benefits of real-time oil condition analysis and monitoring: reduced oil use, reduced maintenance costs, pre-emptive fault detection.
Actual oil condition and remaining oil life is continuously analysed, logged and displayed in real time. Configurable analytics trigger alerts in the event of unexpected contamination and/or oil wear. The built-in data logger and wireless interfaces make downloading data for further analysis simple.
SENSE-2 is a complete plug-and-play solution that can be fitted to any equipment operating in any environment using any type of oil. Everything is included for quick and easy installation.

Oil Interpreting Guide

Tan Delta technology continuously analyses oil in real time at a molecular level, accurately tracking condition changes as equipment operation causes oil to wear. Rate of change projection enables reliable optimal maintenance forecasting and safe interval increases – thus reduced costs. Contamination or equipment issues cause trend spikes which are instantly detected, enabling immediate evaluation and action as necessary to avoid unnecessary break downs and life-shortening equipment wear.

Product Specifications

Name Product Number
SENSE-2 Display Kit SENSE-2

Physical - Sensor

Material Dimensions Weight
Heat resistant polycarbonate 151mm x 66mm x 42mm (L x W x H) 300g


Supply Consumption
+9-30 V DC 0.4w average, continuous 200mA

Data Logging

Logging Interval Battery Backup Data Download Real Time Clock
5 minutes ~10 years Via WiFi using any internet-enabled device Yes

Data Output / Input

Digital Output Analog Output
1xRS485: 9600 baud half duplex to sensor 1xRS485: 115200 baud half duplex from display 1 x 4-20mA


Operating Temperature
-30ºC (-22ºF) to +65ºC (+149ºF)

Standards & Certifications

Shock & Vibration EMC Conformity
BS EN 60068-2-30 (Test Db – Cyc.Hum.) EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) CE Marked
BS EN 60068-2-6 (Test Fc – Sine Vib.) EN 61000-6-2:2007 (Generic Immunity Standard for Industrial Environments) RoHS Compliant
BS EN 60068-2-27 (Test Ea – Mech. Shock) EN 300 328 v1.8.1. (Transferable Electromagnetic Compatibility for Wideband Data Transmission Equipment operating in the 2.4GHz ISM Band and using Wideband Modulation Techniques.)
