VBOX Touch
VBOX Touch Data Logger
With a large colour touchscreen, CAN input, and the ability to write your own apps in Python, VBOX Touch is a versatile data logger designed to meet a wide range of testing needs.
- Precise data logging at 10 or 25 Hz
- 4.3” colour touchscreen
- Available with RTK for centimetre-level accuracy
- Digital input for brake testing
- Log up to 64 CAN channels across 2 CAN Bus interfaces
- Enhanced functionality with free apps
Technical Specifications
VBOX 4 Touch
VBOX Touch is a high-precision GNSS-based data logger engineered for advanced vehicle testing and performance analysis. It features a 25 Hz GNSS receiver with speed accuracy up to ±0.1 km/h and position accuracy as precise as 1 cm with RTK correction, ensuring highly reliable measurement results.
The system supports real-time data logging at 10–25 Hz, capturing critical parameters such as velocity, distance, acceleration, and heading with exceptional resolution. Equipped with a 4.3-inch capacitive touchscreen, dual CAN bus interfaces supporting up to 64 channels, and Python-based custom application capability, VBOX Touch offers unmatched flexibility for automotive testing environments.
Key Features
- 25 Hz GNSS receiver with integrated patch antenna for high-accuracy positioning and speed measurement
- Supports multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou for superior signal stability
- Optional RTK GNSS technology enabling centimetre-level positional accuracy
- 4.3” daylight-readable TFT capacitive touchscreen for clear visibility during outdoor vehicle testing
- Python-based app environment allowing custom automotive testing applications and automation
- Multi-application capability enabling simultaneous execution of different test programs
- Dual CAN Bus interfaces with support for logging up to 64 CAN channels
- CAN FD compatibility for modern vehicle communication systems
- Digital brake trigger input for highly precise brake performance and stopping distance testing
- High stopping distance accuracy up to 10 cm or better with RTK correction
- Integrated acceleration and deceleration performance testing tools
- Built-in lap timing and track performance analysis applications
- Real-time speed, distance, and trajectory measurement
- Expandable app ecosystem with free downloadable applications
- Internal high-capacity data storage for long-duration automotive tests
- High-speed data logging for vehicle dynamics and engineering analysis
- Ethernet and USB connectivity for fast data transfer and system integration
- Compact and rugged design suitable for harsh automotive testing environments
- Easy integration with ADAS targets, robotic platforms, and external sensors
- Free lifetime technical support and professional VBOX analysis software
- User-friendly interface for simplified vehicle testing operations
Applications
|
Accuracy
|
Update rate
|
Maximum velocity
|
Minimum velocity
|
Resolution
|
|---|---|---|---|---|
|
Accuracy(Standalone)
|
Accuracy with SBAS
|
Update rate
|
Resolution
|
|---|---|---|---|
|
Accuracy
|
Resolution
|
|---|---|
|
Accuracy
|
|---|
Which VBOX Touch is right for you?
VBOX Touch
- 25 Hz GNSS receiver with internal patch antenna
- Track GPS, GLONASS, Galileo and BeiDou satellite constellations
- 4.3" TFT daylight readable capacitive touch screen
- 4 x high brightness LED indicators
- 10 cm stopping distance accuracy (using trigger & external antenna)
- Python-based applications; ideal for solving user-specific testing needs
- Up to 64 CAN channels across 2 CAN Bus interfaces
- 1.3 m position accuracy (with SBAS)
- ISO 17025 calibration certificate
VBOX Touch RTK
- 10 Hz GNSS receiver with internal patch antenna
- Track GPS and GLONASS, with a choice of Galileo or BeiDou
- 4.3" TFT daylight readable capacitive touch screen
- 4 x high brightness LED indicators
- 5 cm stopping distance accuracy (using trigger & external antenna)
- Python-based applications; ideal for solving user-specific testing needs
- Up to 64 CAN channels across 2 CAN Bus interfaces
- ±1 cm position accuracy with RTK
- ISO 17025 calibration certificate
VBOX Touch
The VBOX Touch features a 25 Hz GNSS receiver, responsive colour touchscreen and the ability to run multiple applications on the same hardware.
Applications are written in Python script, enabling users with programming knowledge to create their own apps, including custom CAN-based applications to solve specific testing needs.
Performance & Durability Testing

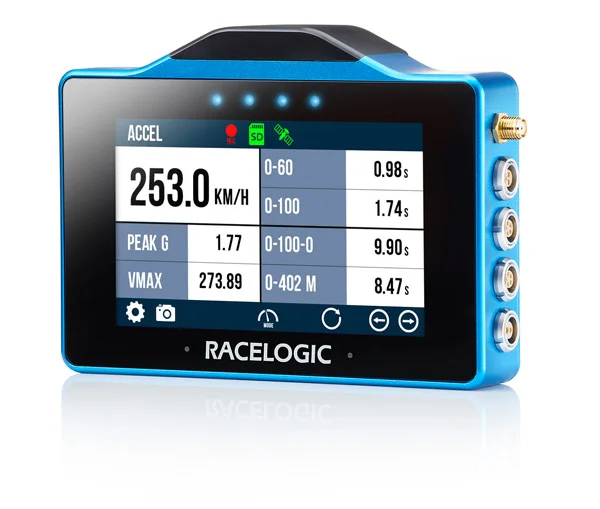

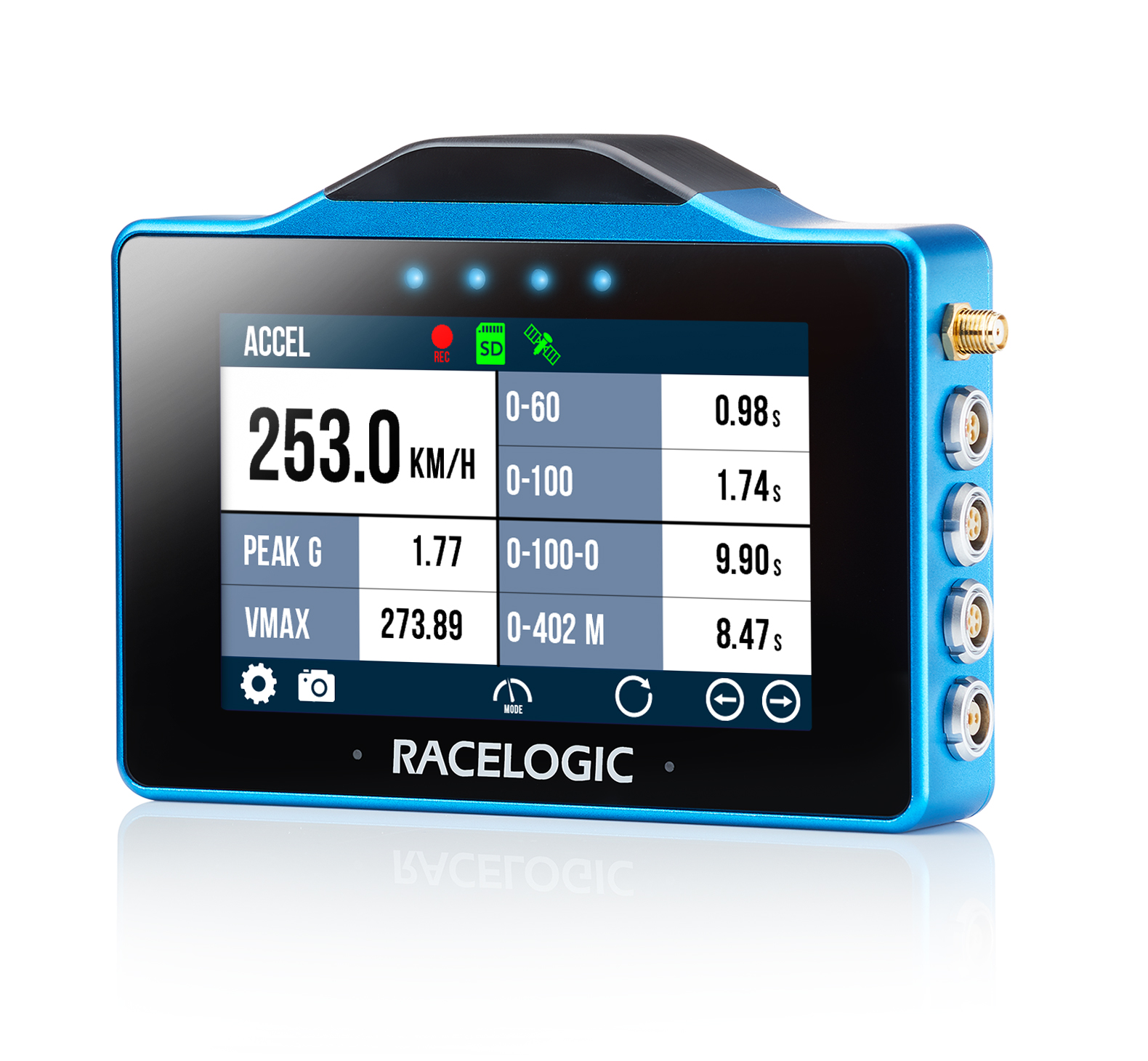

VBOX Touch comes pre-loaded with a dedicated performance app, with shortcuts for popular tests such as 0-60 and 0-100 acceleration tests, and 100-0 and 60-0 deceleration tests.
The Speed Profiler app is great for conducting durability or fuel economy tests. It provides drivers with visual and audible alerts to help them stay within a specific speed range.
Brake & Tyre Temperature Monitoring

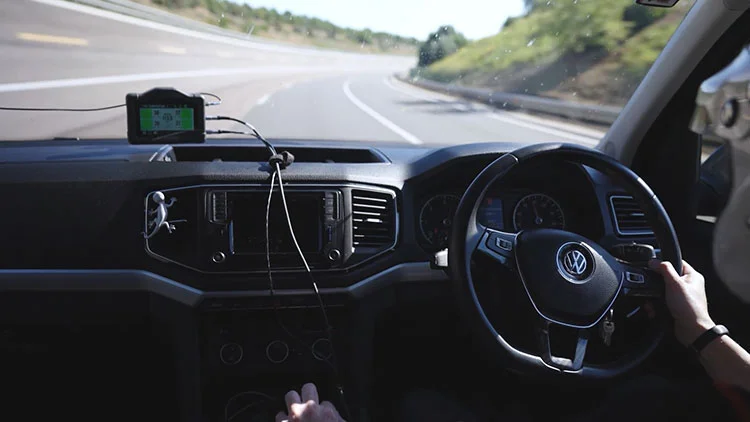

By connecting VBOX Touch to our brake or tyre temperature sensors, you can measure, log and view the surface temperature of your tyres or brake discs in real-time.
Brake & Tyre Testing
VBOX Touch RTK allows you to evaluate a vehicle’s braking performance with a stopping accuracy of 5 cm and inbuilt MFDD calculation.
It features a digital brake trigger input and two CAN interfaces which give you additional data directly from the vehicle CAN Bus or via various VBOX modules including IMU, Thermocouple or Mini Input Module.

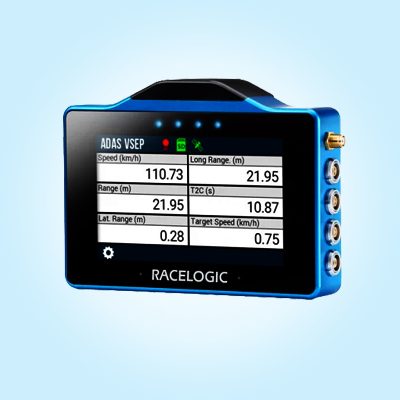

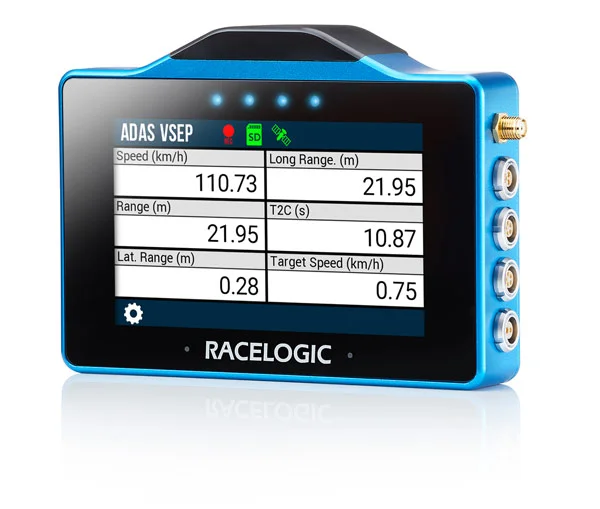

ADAS Testing
Looking for a cost-effective solution for testing on the open road?
By connecting two VBOX Touch RTK units to an NTRIP Modem and 2.4 GHz radio, you can accurately measure the distance between two moving objects in real-time. This method offers exceptional precision at a competitive price point.
VBOX Touch RTK
VBOX Touch RTK is the ideal solution for those who require centimetre-level positional accuracy in their testing applications.
Equipped with a 10 Hz, RTK-enabled GNSS receiver, VBOX Touch RTK delivers robust position accuracy and precise measurements of speed and distance, all at an extremely competitive price point. By receiving RTK correctional signals via a Base Station or NTRIP modem, you can achieve up to 1 cm positional accuracy on a test track or on open roads.
When it comes to braking distance accuracy, VBOX Touch RTK records results to within 5 cm.
VBOX Touch App Store

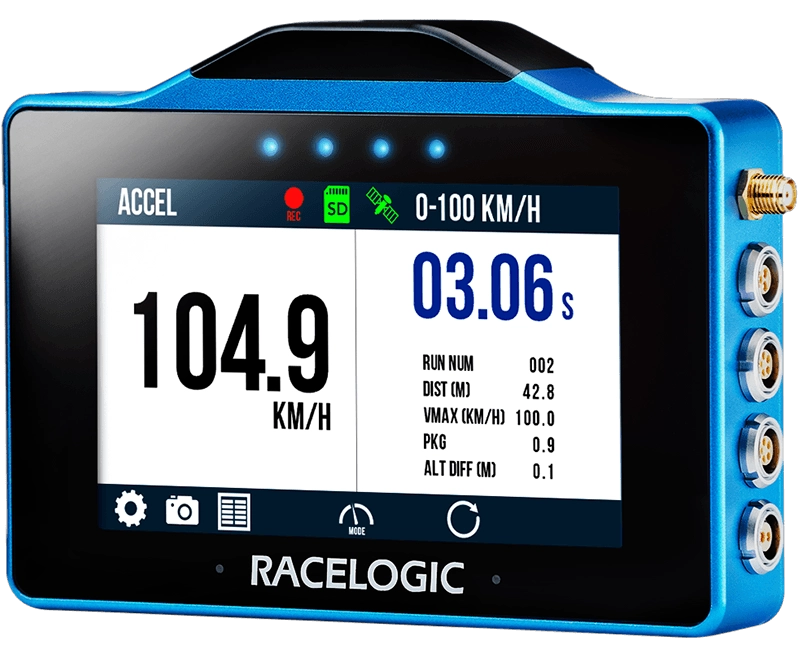

VBOX Touch comes pre-installed with a versatile Performance App, for acceleration testing, deceleration testing, lap timing and speed display.
For other use cases, such as tyre temperature monitoring, durability testing or event marking you can find additional apps in our App Store, all free of charge. You can even write and run your own applications, if you are familiar with Python script. The possibilities are endless. To revert to the standard functionality of VBOX Touch, simply re-install the Performance App again.
Performance App (Default)
This application ships with VBOX Touch as standard and enables you to perform acceleration and deceleration tests, as well as measure your lap times, live speed, average speed or maximum speed.
Multi-Function Display
The Multi-Function Display app allows you to use the VBOX Touch as a display when connected to a VBOX 4. You will need the cable ‘RLCAB005-C’ to connect VBOX Touch to a VBOX 4.
Tyre Temperature Monitoring
Measure, log and display the surface temperature of all tyres in real-time via heat maps, live and maximum temperature values. You will also need the RACELOGIC tyre temperature sensor kit (RLACS272).

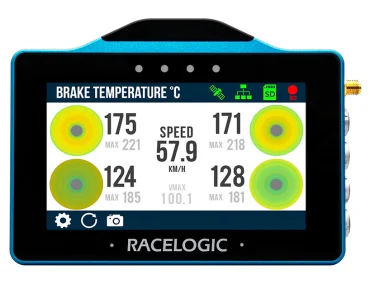

Brake Temperature Monitoring
The Brake Temperature Monitoring app gives you a real-time display of the temperature of each brake disc. In order to use this app, you need the Brake Temperature Monitoring Sensor Kit (RLACS314).
Speed Profiler
Ideal for durability, fuel economy and tyre testing. You can set a speed profile, load it onto the unit, and the driver will receive visual and audible alerts when deviating from the target speed or tolerance.
How does it work
An Introduction

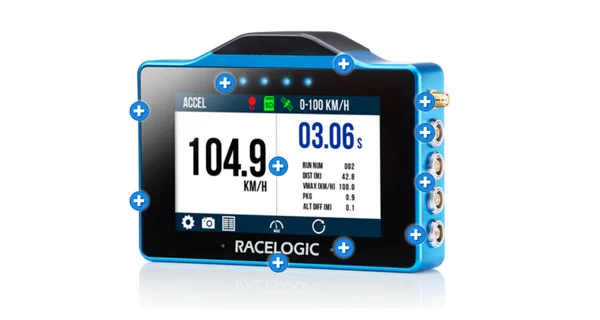

This tutorial takes you through the uses and features of the VBOX Touch.
Getting Started
This tutorial takes you through getting started with using the VBOX Touch for the first time and its basic functionality.
Acceleration Test Application
This tutorial takes you through Acceleration Test Application screens; the information they contain and how they can be used.
Deceleration Test Application
This tutorial takes you through the Deceleration Test Application screens; the information they contain and how they can be used.

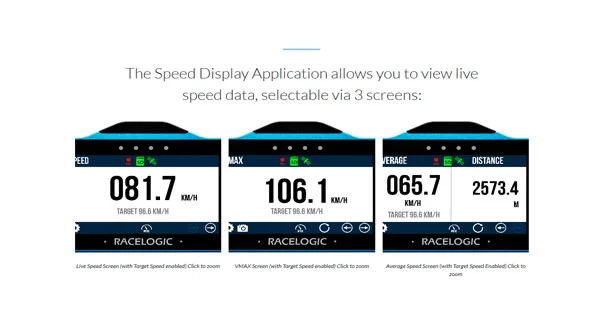

Speed Display Application
This tutorial takes you through the Speed Display Application screens; the information they contain and how they can be used.

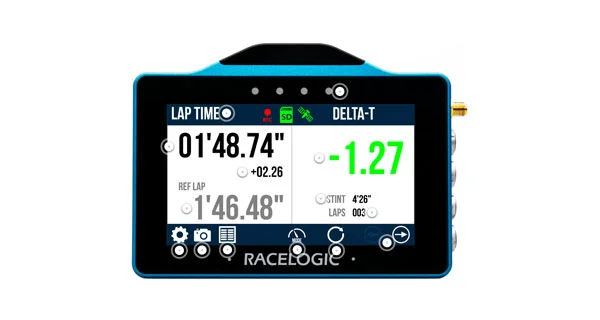

Lap Timing Application
This tutorial takes you through the Lap Timing Application screens; the information they contain and how they can be used.
Free Analysis Software
VBOX Test Suite
Our user-friendly, intuitive data analysis software is free and comes preloaded with application specific plugins that make it quick and easy to conduct tests.
You can either save a recorded session as a .vbo file to the SD card and import it into VBOX Test Suite, or you can view your test data live when connecting the unit via a serial cable to your laptop or PC.
- Over 25 application specific plugins
- Live and post-event data analysis
- Create your own custom tests
- Customisable layout
- Easily create charts, tables and reports
- Analyse data sets simultaneously
Add-ons and Accessories
NTRIP Modem
The VBOX NTRIP Modem allows a VBOX Touch RTK to receive positional correction data via Network RTK, without having to use a VBOX Base Station.
Tyre or Brake Temperature Sensors
When loaded with the free Tyre/ Brake Temperature App (see Apps Store) and connected to four infrared temperature sensors (RLACS314 for brake temperatures, RLACS272 for tyre temperatures) you can measure, log and monitor the surface temperature of all four tyres or brake disks with VBOX Touch.

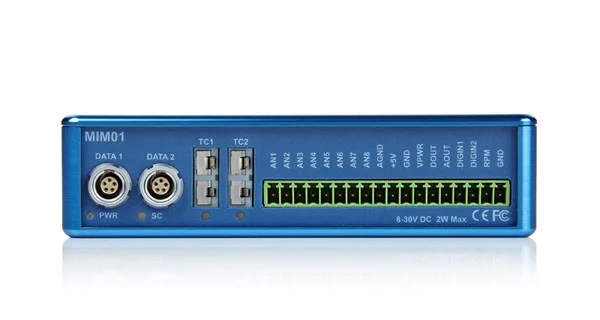

Mini Input Module
The Mini Input Module allows data such as wheel speed, RPM, temperature, fuel flow, throttle angles and pedal forces to be easily measured along the GNSS data.
Brake Pedal Trigger
The VBOX Brake Pedal Trigger (RLVBACS004) allows precise measurement of brake pedal application during braking. The exact time is captured and recorded by the VBOX at a high sampling rate.
VBOX Base Station
A VBOX base station improves the position accuracy of the VBOX Touch RTK by calculating and transmitting position correction data.
Have Questions? Get in Touch
What is VBOX Touch and who is it designed for?
VBOX Touch is a compact GNSS-based data logger with an integrated touchscreen, designed for engineers, test drivers, and motorsport professionals. It enables quick and efficient vehicle performance testing without requiring complex setup or external systems.
What kind of tests can be performed using VBOX Touch?
The system comes with built-in applications for acceleration testing, braking performance, lap timing, speed measurement, and data logging. These pre-configured modes allow users to perform standard automotive tests directly from the device.
Does VBOX Touch support custom applications?
Yes, VBOX Touch supports Python-based applications, allowing users to develop and run custom test scripts. This makes it highly flexible for specialized testing requirements, including custom CAN-based or user-defined test scenarios.
What is the accuracy and GNSS capability of VBOX Touch?
The system features a 25 Hz GNSS receiver and can be upgraded to an RTK version for centimeter-level positional accuracy. This ensures reliable and precise measurement for performance testing and validation tasks.
What are the key hardware features of VBOX Touch?
VBOX Touch includes a daylight-readable capacitive touchscreen, internal GNSS antenna (with external option), SD card data logging, and a rugged housing suitable for in-vehicle use. It is designed for quick installation and ease of use in real-world testing environments.
