VBOX Video Loggers
VBOX Video Loggers are advanced data acquisition systems that combine high-definition video recording with precise GNSS-based performance measurement. They support multi-channel data logging, including CAN inputs, with update rates up to 25 Hz for accurate speed, position, and acceleration analysis.
Equipped with integrated cameras and real-time data overlay capabilities, they ensure synchronized video and performance metrics for detailed evaluation. With expandable storage, robust connectivity options, and high processing efficiency, VBOX Video Loggers are designed for demanding automotive testing, motorsports analysis, and R&D applications.
VBOX Video Loggers Features & Capabilities
- High accuracy GPS with 10, 20, or 25 Hz update rates for precise speed, distance, and position measurement
- Advanced VBOX Video Loggers technology for synchronized automotive video and telemetry recording
- CAN Bus input support to log vehicle parameters such as throttle position, RPM, steering angle, and brake pressure
- Capability to record up to 80 CAN channels on HD2 models for comprehensive vehicle diagnostics and analysis

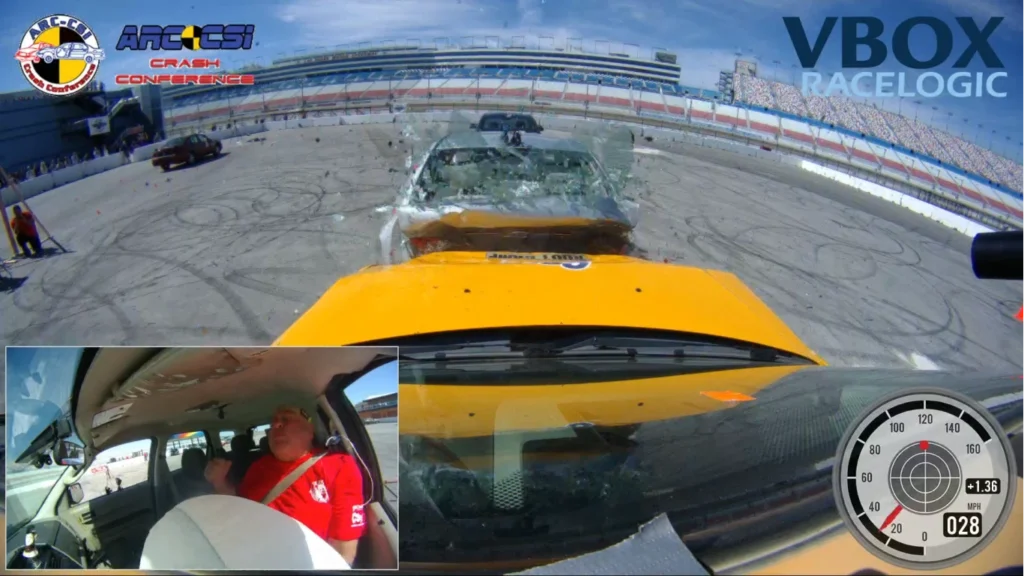

- Real-time graphical overlay of speed, acceleration, lap timing, GNSS data, and CAN parameters directly onto recorded video
- HD video recording with exceptional colour reproduction and superior low-light performance for track and road testing
- HDMI output option for live video streaming to external monitors, control rooms, or remote engineering teams
- High-performance automotive telemetry and video synchronization for motorsport and ADAS validation
- Power backup protection system preventing data loss during temporary power interruptions
- Free lifetime technical support with regular firmware and software updates
- Included VBOX Test Suite analysis software for synchronized review of video, GNSS, and CAN Bus data
- High-precision vehicle positioning system supporting automotive engineering and validation applications
- Compact and rugged design suitable for harsh automotive and motorsport environments
- Ideal for real-time vehicle performance monitoring and comparative track analysis
Applications
- Advanced vehicle performance testing and validation using VBOX Video Loggers for synchronized HD video and telemetry analysis
- Professional motorsports analysis and driver performance evaluation with real-time lap timing, speed tracking, and driving behaviour review
- High-precision ADAS testing and validation with visual data support for autonomous vehicle development and sensor verification
- Accurate brake testing, acceleration, and handling analysis using GNSS positioning and CAN Bus data logging
- Comprehensive automotive R&D and engineering development for vehicle dynamics, safety systems, and performance optimization
- Reliable incident analysis and real-world driving data recording with synchronized automotive video and vehicle telemetry
- High-speed track testing with lap timing and performance review for motorsport teams and automotive manufacturers
- Seamless integration with CAN-based vehicle systems for advanced diagnostics and vehicle communication analysis
- Intelligent automotive video data logging system for engineering validation and comparative vehicle benchmarking
- Real-time GNSS vehicle tracking and automotive telemetry analysis for testing accuracy and route monitoring
- Ideal solution for vehicle dynamics testing, suspension tuning, and ride quality evaluation
- Professional CAN Bus diagnostics and automotive measurement applications for OEMs and automotive engineers
- Efficient motorsport telemetry and performance data acquisition for race engineering and driver coaching
- Integrated HD vehicle recording and automotive testing equipment for research, development, and validation projects
- Accurate ADAS sensor validation and autonomous driving analysis with synchronized video overlay and telemetry data
|
Accuracy
|
Units
|
Maximum velocity
|
Resolution
|
Update rate
|
|---|---|---|---|---|
|
Accuracy
|
Units
|
Resolution
|
|---|---|---|
|
Operating Temp. Recorder
|
Operating Temp. Camera
|
Storage Temperature
|
|---|---|---|
|
Dimensions
|
Weight
|
|---|---|
|
Resolution
|
Field of View
|
Camera specs
|
|---|---|---|
Which Video data logger is right for you?

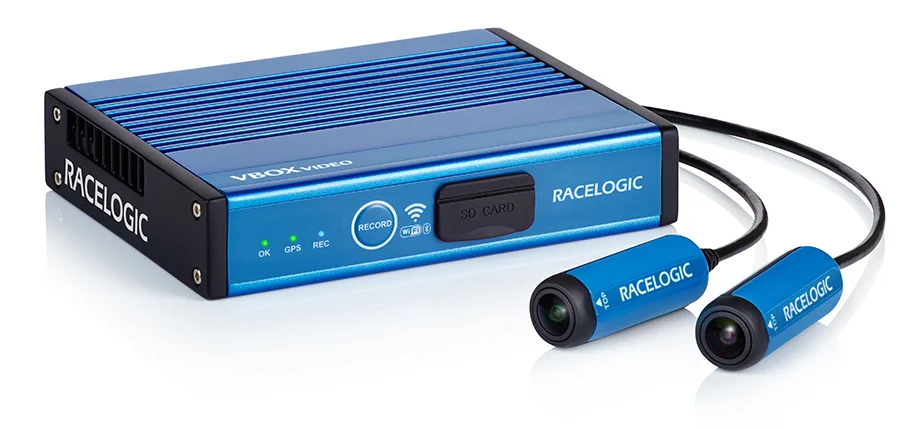

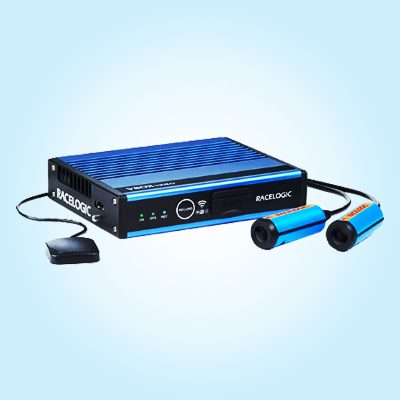

VBOX Video HD2
- 25 Hz GPS receiver
- Up to 2 camera inputs
- 1920 x 1080p at 30fps video
- Log up to 80 CAN signals
- Real-time HD graphic overlay
- HDMI for live video streaming

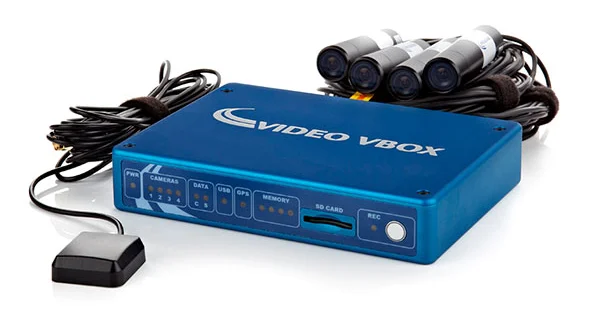

Video VBOX Pro
- 10 or 20 Hz GPS receiver
- Up to 4 camera inputs
- DVD quality video at 25 (PAL) or 30 (NTSC) fps
- Log up to 32 CAN signals
- Real-time graphic overlay
- Robust aluminium enclosure
Applications
ADAS Testing

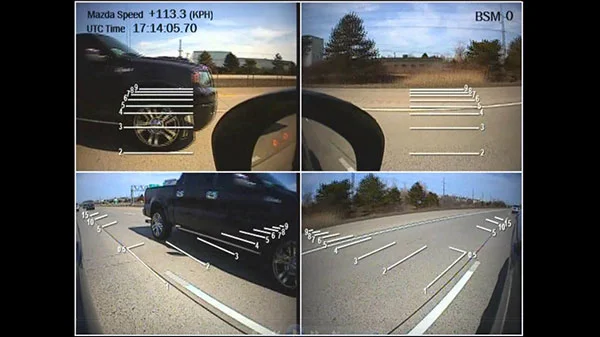

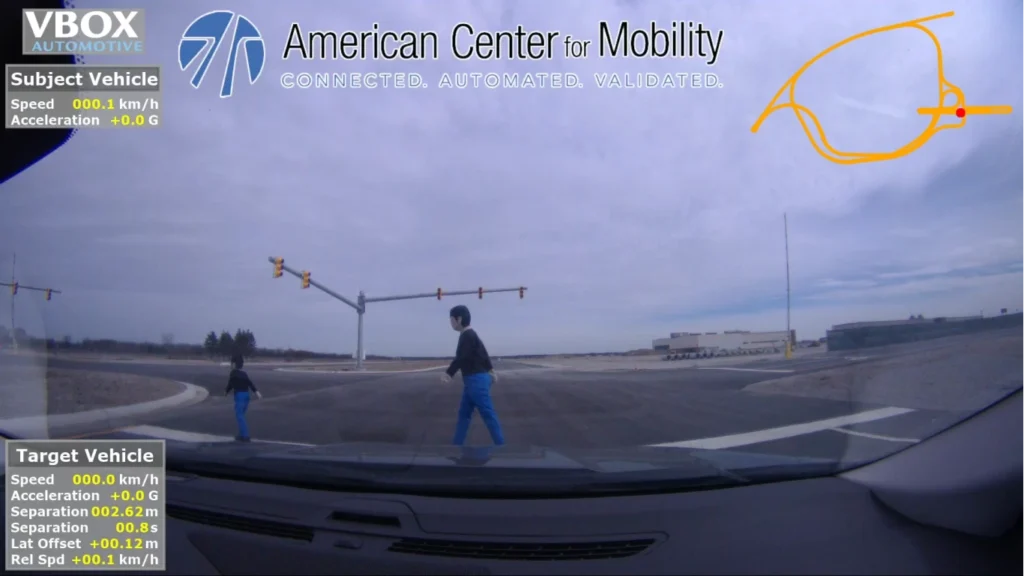

See the exact moment that a vehicle crosses the line when validating the accuracy of Lane Departure Warning or Blind Sport Detection systems, with up to four cameras. VBOX Video data loggers are also ideal for Park Assist testing, providing a visual reference to the kerb.
Brake & Tyre Testing
The VBOX Video HD2 is compatible with the VBOX Tyre Temperature Monitoring System. Measure, log and display the surface temperature of up to four tyres with heat maps overlaid in real-time on the video, making it easy to evaluate tyre performance.
Handling & Dynamics

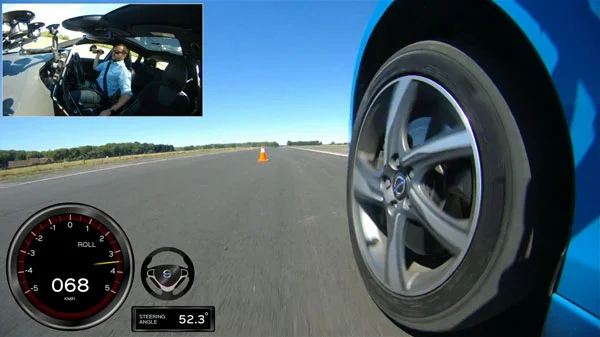

See what is happening inside and outside the vehicle at any given time. See the full picture and understand the exact path or behaviour of a vehicle during any application, making use of synchronised video and data.

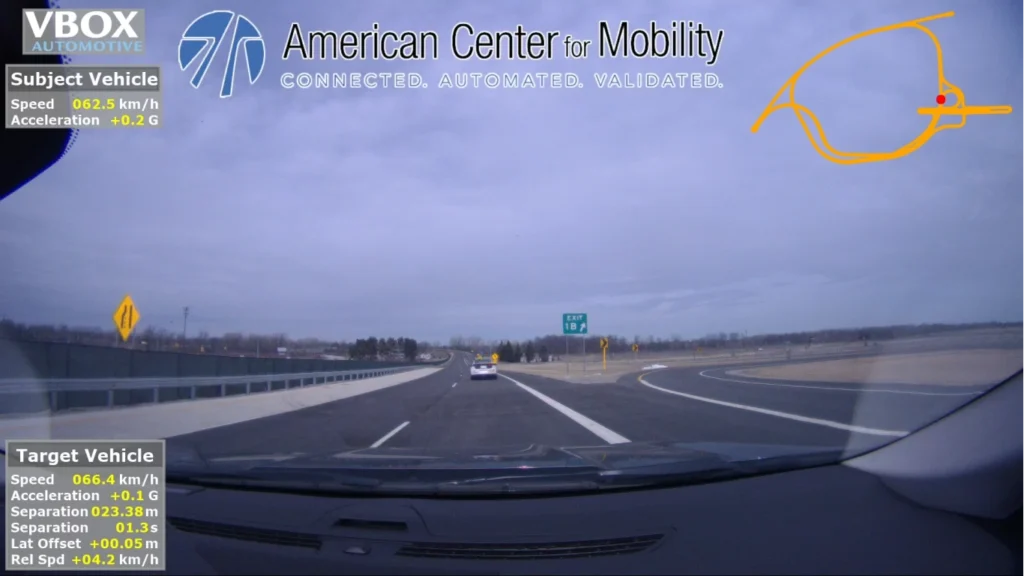

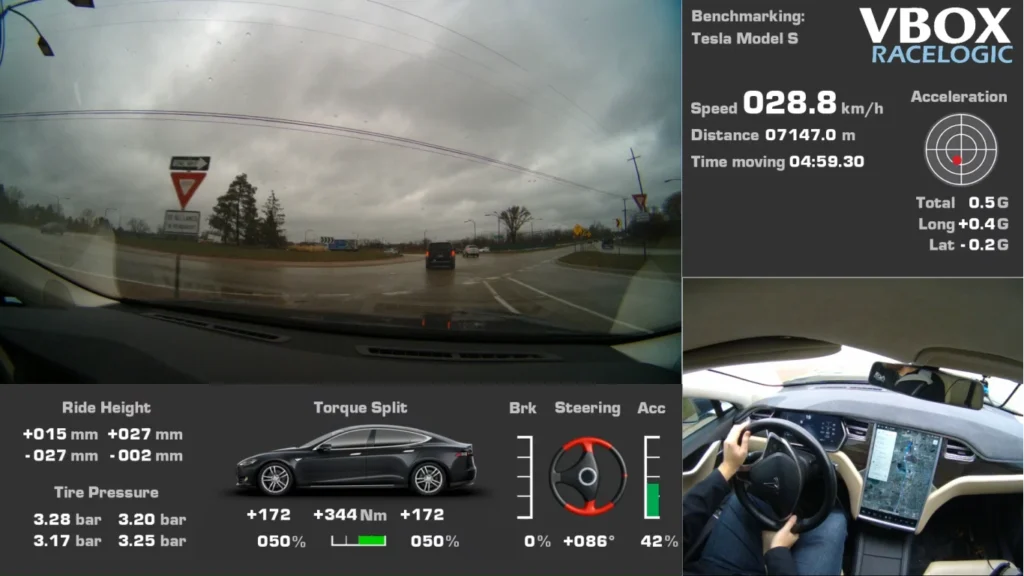

Real-time Graphic Overlay

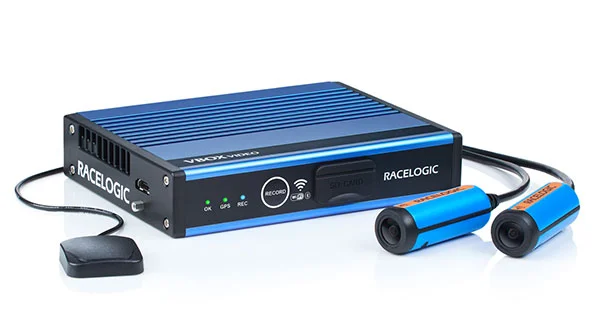

VBOX Video HD2

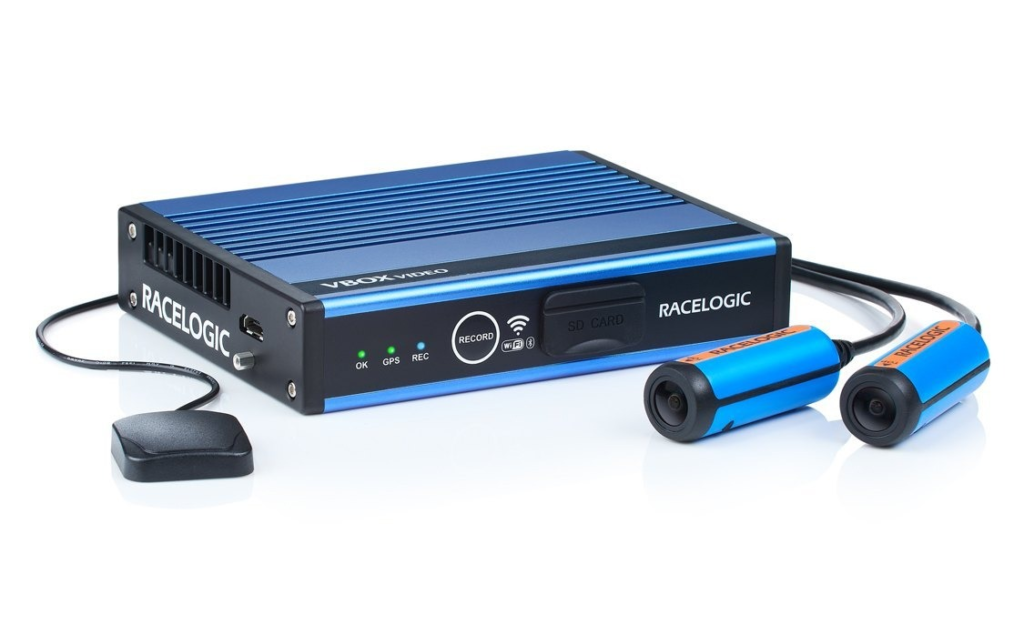

The VBOX Video HD2 is our most advanced video data logger and can record in Full HD at 30 frames per second. It is also available with dual cameras and can log up to 80 vehicle CAN channels.
If you need to log more than 32 CAN channels, then the VBOX Video HD2 might be the best data logger for you. It is extremely popular with OEMs, automotive engineering departments and proving grounds, as the VBOX Video HD2 is available with one or two cameras, that can be mounted inside or outside the vehicle.

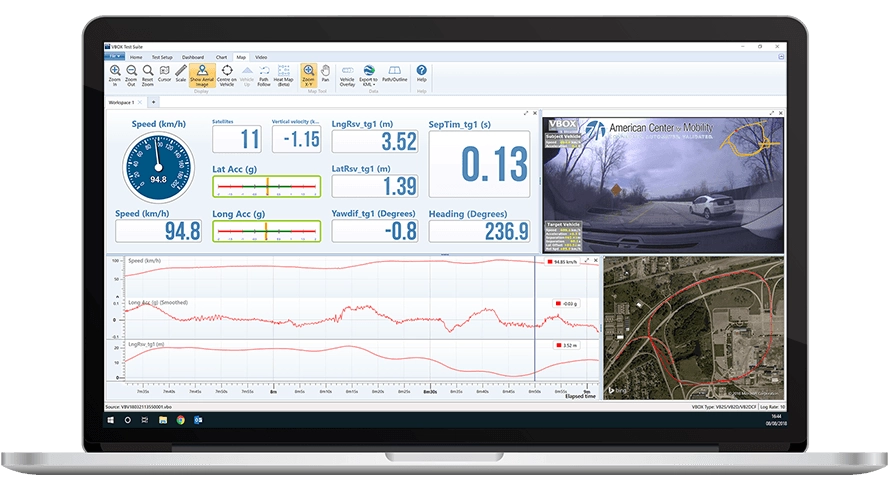

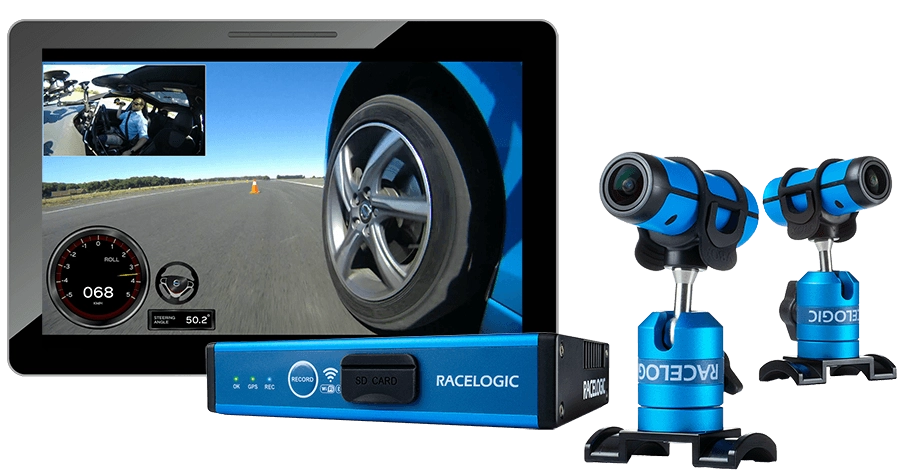

Synchronised video and data can make it easier to understand the dynamics and behaviour of a vehicle during a specific test. You can simultaneously play back your video footage in VBOX Test Suite and analyse your data in charts and tables, and even share what you see on your screen with colleagues.
Live streaming to remote engineers
The VBOX Video HD2 is available with an HDMI option, allowing you to stream real-time video and audio to an HDMI compatible monitor, recorder or streaming device such as LiveU Solo.
Live footage can be shared with engineers or departments working remotely. This is particularly useful when only a limited number of people are allowed in the test vehicle, or if you are collaborating with other departments around the world.
Live-streaming can save valuable time, as a team of remote engineers can see what is happening in real-time and share feedback with the test driver using radios or telematics equipment.
Tyre Temperature Monitoring
The VBOX Video HD2 can also be used in conjunction with the RACELOGIC tyre temperature monitoring sensors, making it easy to measure, log and display the surface temperature of all four tyres in real-time.

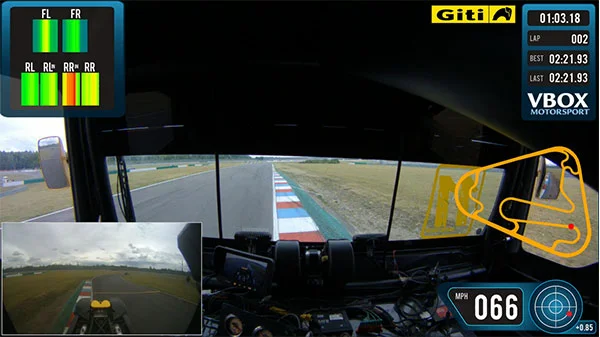

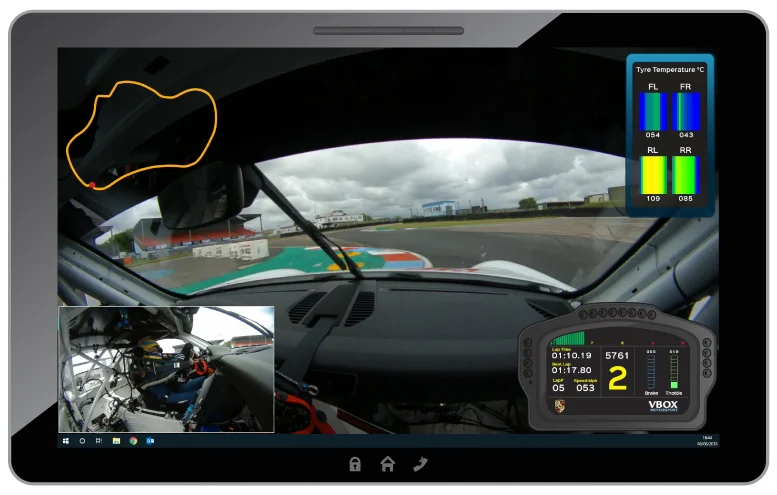

Data can be recorded by the VBOX Video HD2 data logger and heat maps are overlaid in real-time on the video. The sensors offer 120° FOV and each sensor can measure up to 16 temperature points on a tyre, with surface temperatures ranging from -20 °C to 300 °C.
As this information is available on the video, it is extremely easy to interpret and see exactly what is happening on the test track.
Free Analysis Software
VBOX Test Suite
Our user-friendly, intuitive data analysis software is free and comes preloaded with application specific plugins that make it quick and easy to conduct tests.
You can either save a recorded session as a .vbo file to the SD card and import it into VBOX Test Suite, or you can view your test data live when connecting the unit via a serial cable to your laptop or PC.
- Over 25 application specific plugins
- Live and post-event data analysis
- Create your own custom tests
- Customisable layout
- Easily create charts, tables and reports
- Analyse data sets simultaneously
Add-ons and Accessories
VBOX 4
You can use a VBOX 4 to record vehicle CAN or other sensor data at 100 Hz. In this case VBOX Video is used for display purposes only and will receive the data via CAN at the native log rate (e.g. 10 or 25 Hz) to create a real-time graphical overlay onto the recorded video. The data review will still use 100 Hz data logged by the VBOX 4. You can align the video with the 100 Hz VBOX data in VBOX Test Suite using the “Video Sync” option.
LiveU Solo

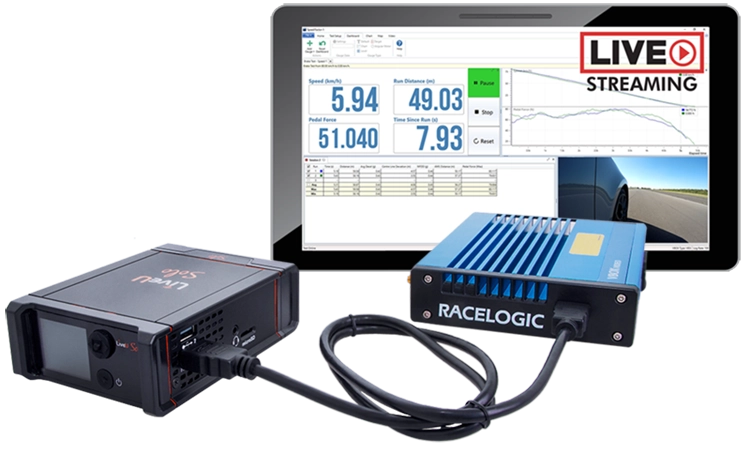

This HDMI streaming device allows you to share live footage from the test vehicle with engineers or departments working remotely. LiveU Solo is only compatible with the HDMI version of VBOX Video HD2 logger.

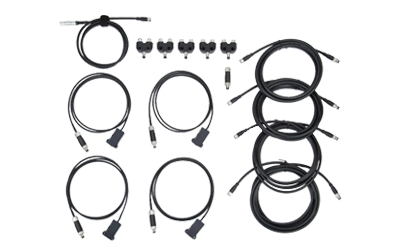

Tyre Temperature Sensors
Measure, log and display the surface temperature of all four tyres as a heat map overlay on your HD2 video footage. The sensors are only compatible with a VBOX Video HD2 or a VBOX Touch.
Camera Mounting Arm
This sturdy adjustable mounting arm allows you to place the cameras inside and outside the vehicle.
Thermocouple Interface
In standalone mode all VBOX video loggers can be used with any of our VBOX input modules. For example the Thermocouple Interface allows you to log 8 K-type thermocouple inputs along with the normal channels of VBOX data.
Remote Start/Stop Logging Switch
Connect a logging switch to the HD2 to give you full control over the logging. The RLACS237 also allows you to log to a USB stick or solid state hard drive.

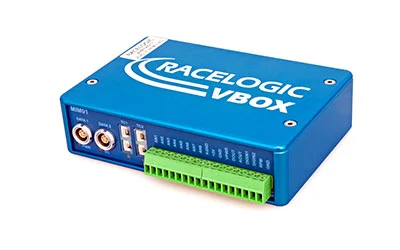

Mini Input Module
The Mini Input Module allows data such as temperature, RPM, wheel speed, fuel flow, throttle angles and pedal forces to be easily measured along with the VBOX GPS data.
Inertial Measurement Unit
The VBOX IMU provides highly accurate measurements of pitch, roll, and yaw rate using three rate gyros, as well as x, y, z acceleration via three accelerometers.
Analogue Input Module
This 8-channel 16-bit voltage interface allows vehicle analogue output sensor data to be logged by the VBOX Video HD2 and Video VBOX Pro.
Frequency Input Module
The VBOX Frequency & Pulse Counter Input Module enables frequency based signals in the range of 1 Hz to 20 kHz to be recorded.
