Performance Box Touch

Performance Box Touch

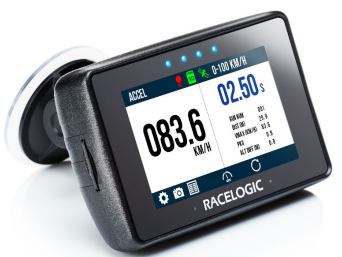

Performance Box Touch is a simple 25 Hz data logger with a touchscreen, designed for performance testing, lap timing, and speed display.

  • 25 Hz GPS data logging
  • 4.3” colour touchscreen
  • Performance, lap timing and speed display
  • Up to 6 hours battery lifetime
Enquire Now

Technical Specifications

Performance Box Touch

PerformanceBox Touch is a high-accuracy GNSS-based performance meter designed for precise vehicle testing and data analysis. It features high update rates for accurate measurement of speed, acceleration, braking distance, and lap timing.

      The device includes a responsive touchscreen display with real-time data visualization and built-in data logging for reliable performance tracking. With easy installation, robust design, and advanced processing capability, PerformanceBox Touch is ideal for automotive testing, motorsports, and real-world performance evaluation.

Enquire Now
Download Product Info

Key Features

  • Performance Box Touch with 25 Hz GNSS receiver for highly accurate vehicle speed, positioning, and automotive performance testing
  • Advanced Performance Box Touch data logger featuring a 4.3” TFT daylight-readable capacitive colour touchscreen
  • Ideal for vehicle performance analysis, lap timing, acceleration testing, and real-time speed monitoring applications
  • Built-in GNSS antenna with external antenna support for enhanced GPS vehicle testing accuracy
  • Live slope correction technology for precise acceleration and brake performance testing results
  • SD card data logging for secure recording, playback, and motorsport telemetry analysis
  • Includes free VBOX Test Suite and Circuit Tools for professional vehicle dynamics and track performance analysis
  • Up to 6 hours battery life with optional clip-on battery for extended automotive testing sessions
  • Multiple test modes including acceleration, deceleration, lap timing, braking distance, and speed validation
  • Free lifetime software updates and dedicated technical support for long-term vehicle testing solutions

Applications

  • Performance Box Touch for advanced vehicle performance testing and automotive validation applications
  • Accurate acceleration testing and braking distance measurement using high-precision GNSS technology
  • Ideal for motorsports analysis, circuit testing, and professional lap timing applications
  • Supports driver performance analysis, racing data review, and driving improvement programs
  • Widely used in automotive R&D, vehicle dynamics testing, and engineering development projects
  • Enables real-world vehicle data collection for speed, position, and performance analysis
  • Perfect for vehicle performance benchmarking, comparative testing, and automotive evaluation
  • Suitable for automotive enthusiasts, race teams, test engineers, and professional vehicle testers
  • Reliable GPS-based performance testing solution for track, road, and automotive validation environments
  • Advanced vehicle testing and lap timing tool with real-time data logging and analysis features
Accuracy (Standalone)
Accuracy with RTK
Resolution
V: 1.8 m; H: 1.2 m*
V: 10 mm + 0.8 ppm x baseline*; H: 5 mm + 0.5 ppm x baseline*
1.8 mm
Accuracy
Resolution
0.05 % eq. to ±1.8 cm braking accuracy
1 cm
Accuracy
Resolution
0.01 km/h
0.01 km/h
Accuracy
Resolution
0.1° / 0.01 s
0.1° / 0.01 s

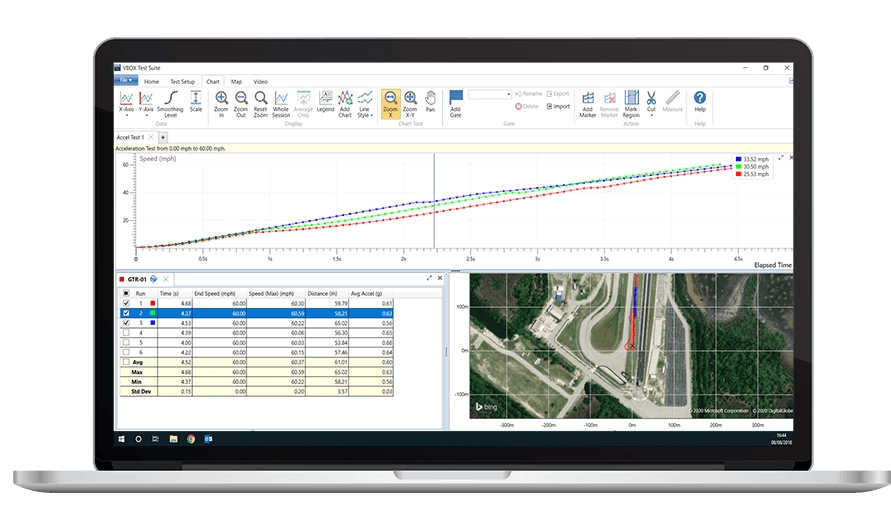

VBOX Test Suite Software

VBOX Test Suite, our user-friendly, intuitive data analysis software makes the analysis of vehicle acceleration and brake test data quick and clear.



Dedicated plugins and visual aids such as charts, graphs and tables allow you to analyse your data in more detail.

Operation Modes

Performance Box Touch has 4 modes available which allow you to conduct a range of performance tests and functions: Acceleration, Deceleration, Lap Time and Speed.

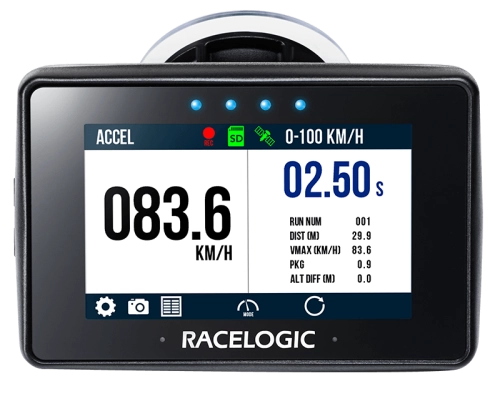

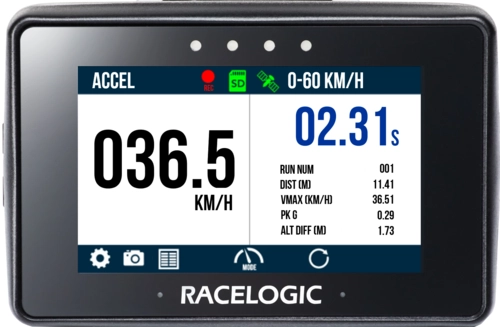

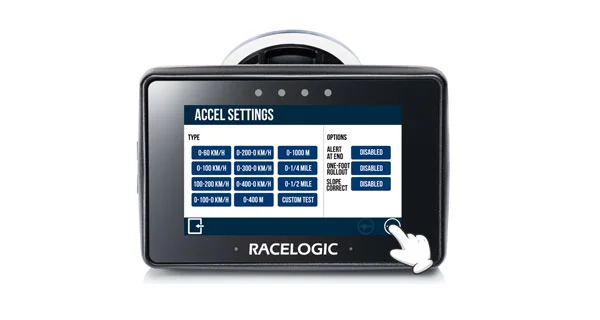

Acceleration Mode

Acceleration tests: 0–60, 0–100, 100–200 km/h or mph.

Other predefined tests: 0–100–0, 0–200–0, 0–300-0 and 0–400-0 km/h or mph tests or distance including 0–400 and 0–1000 meters as well as 0–¼ mile and 0–½ mile.

Custom tests can be configured, and other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.

Screen displays time, run number, distance, VMAX, Peak G and altitude difference. Units of measurement for speed or distance can be easily swapped between metric or imperial.

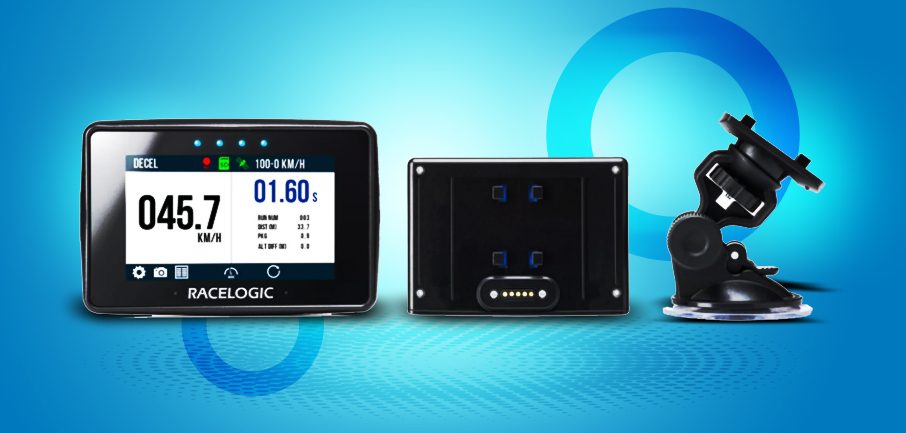

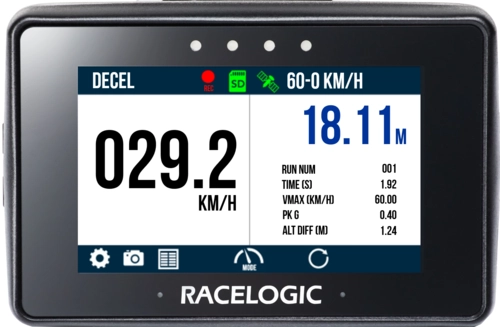

Deceleration Mode

Deceleration tests: 60–0, 100–0, 200–0, 300–0 km/h or mph.


Custom tests allowing the user to define their own configurable settings.


Screen displays time, run number, distance, Peak G and altitude difference. Units of measurement for speed or distance can be displayed in metric or imperial and easily swapped between.

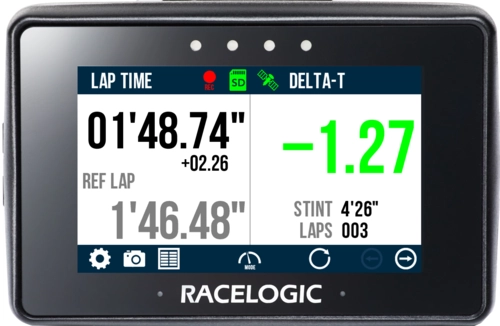

Lap Timing Mode

Sophisticated lap timer with an updatable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count.

Virtual Start/Finish Lines: Using GPS, there is no need for an external beacon or transmitter, as timing will start with vehicle movement. Separate start and finish lines can be set for sprint or hill climbing.

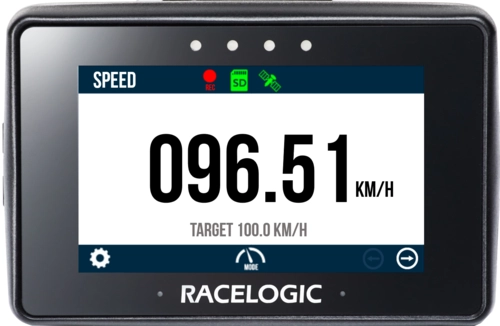

Speed Display Mode

Digital speedometer: Performance Box Touch also works as a highly accurate digital speedometer, a handy feature for street driving.

Units can be set in km/h or mph and display can show live speed, VMAX, average speed and distance including setting a target speed.

Tutorials

An Introduction

This tutorial guides you through what the Performance Box Touch is and what it can be used for, along with what is included in the package and its key features.

Getting Started

This tutorial guides you through how to get started with using your Performance Box Touch.

Installation

This tutorial guides you through how to mount and install Performance Box Touch within your vehicle.

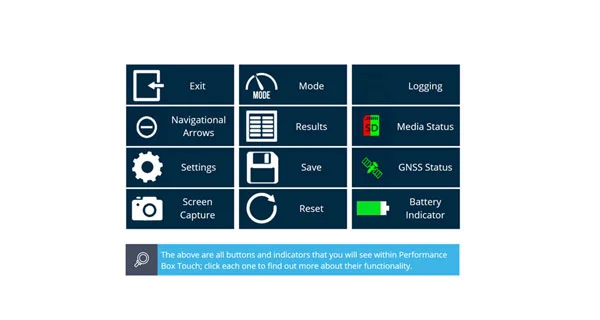

Device Settings

This tutorial guides you through how to configure your Performance Box Touch.

Speed Display Application

This tutorial guides you through how to configure and use the Speed Display Application on Performance Box Touch.

Acceleration Testing Application

This tutorial guides you through how to configure and use the Acceleration Testing Application on Performance Box Touch.

Deceleration Test Application

This tutorial guides you through how to configure and use the Deceleration Testing Application on Performance Box Touch.

Speed Display Application

This tutorial guides you through how to configure and use the Lap Timing Application on Performance Box Touch.

Have Questions? Get in Touch

What is Performance Box Touch and what is it used for?

Performance Box Touch is a compact GNSS-based performance measurement device designed for accurate vehicle acceleration and braking analysis. It is widely used for automotive testing, dealership demonstrations, performance benchmarking, and enthusiast vehicle testing.

The system can perform a wide range of performance tests including 0–100 km/h acceleration, 0–200 km/h, quarter-mile, braking distance, lap timing, and custom speed-based tests. It provides instant results directly on the touchscreen.

Performance Box Touch uses high-frequency GNSS technology to deliver highly precise speed and distance measurements. This ensures repeatable and reliable results compared to traditional stopwatch-based testing methods.

Yes, the device is designed for quick setup with a simple touchscreen interface. It can be mounted easily inside the vehicle and begins testing within minutes, making it ideal for both professional engineers and automotive enthusiasts.

Unlike generic mobile apps or low-cost GPS meters, Performance Box Touch provides professional-grade measurement accuracy, dedicated test modes, robust data logging, and Racelogic’s proven GNSS technology trusted by OEMs and test engineers worldwide.
