Speed Sensor
Technical Specifications

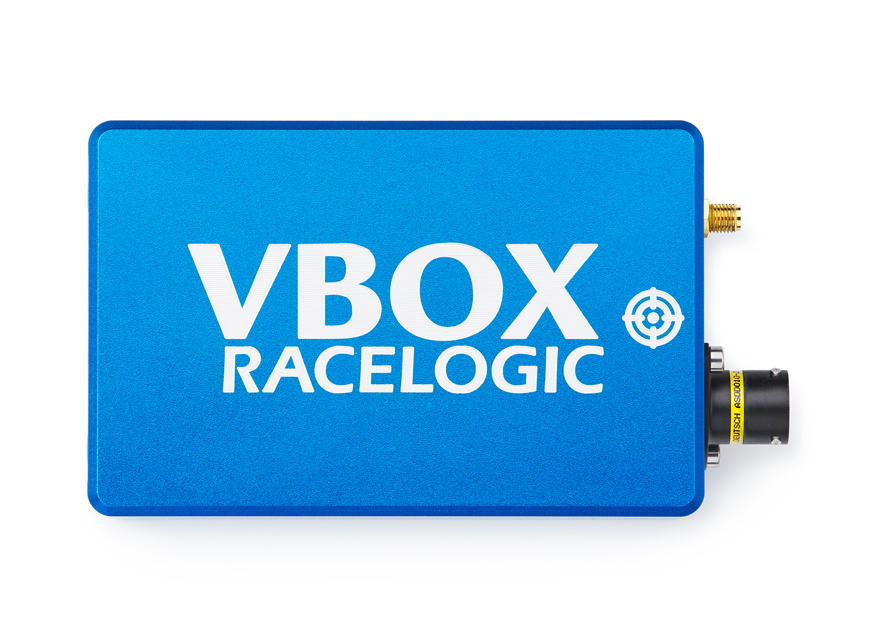

Speed Sensor
Speed Sensors are high-precision devices designed to accurately measure vehicle speed using advanced sensing technologies such as GNSS, wheel-based detection, or radar systems. They provide real-time data acquisition with high resolution and fast response, ensuring reliable performance analysis and control.
The system supports seamless integration with CAN bus and data logging platforms for synchronized measurement. With robust construction, high accuracy, and repeatability, Speed Sensors are ideal for automotive testing, safety systems, and vehicle dynamics analysis.
Key Features
- Multi-GNSS support (GPS, GLONASS, Galileo, BeiDou) for improved accuracy in challenging environments
- RS232 serial output for NMEA data and connection to VBOX Test Suite
- CAN Bus output for seamless integration with data loggers and testing systems
- Live data monitoring when connected to PC using VBOX Test Suite software
- User configurable digital output (speed pulse or lap beacon marker)
- OLED display with control buttons for easy configuration
- IP67 rated dustproof and waterproof enclosure for harsh environments
- ISO/IEC 17025:2017 calibrated for high measurement accuracy
- High accuracy GNSS receiver for precise speed and position data
- Brake trigger input for accurate braking measurements
Applications
Vehicle speed monitoring and control systems
Automotive performance testing and validation
ADAS and safety system development
Brake and acceleration performance analysis
Vehicle dynamics and motion analysis
Automotive research and development (R&D)
Real-world driving data collection
Integration with CAN-based vehicle systems for diagnostics
|
Accuracy
|
Units
|
Maximum velocity
|
Minimum velocity
|
Resolution
|
Latency
|
|---|---|---|---|---|---|
|
Accuracy (Standalone)
|
Accuracy with SBAS
|
Accuracy with DGPS
|
Accuracy with RTK
|
Resolution
|
|---|---|---|---|---|
Which Speed Sensor is right for you?

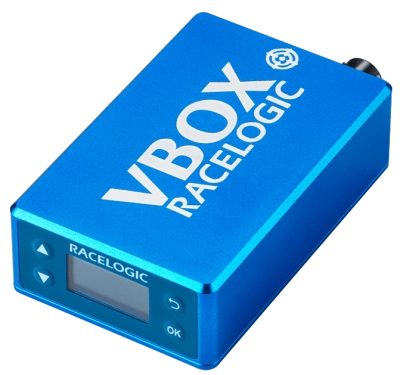

VBOX 25 Hz Speed Sensor
- 25 Hz GNSS receiver
- CAN Bus Output
- RS232 for NMEA output or connection to VBOX Test Suite
- User configurable digital output (Virtual Lap Beacon or Speed)
- IP67 rated enclosure: water + dustproof
- ISO/IEC: 17025:2017 calibrated
- User-friendly OLED display
- ± 10 cm Brake distance accuracy (Trigger)
- 1.3 m position accuracy (with SBAS)
- Small (140 x 79 x 38 mm) & rugged
VBOX 100 Hz Speed Sensor (V5)
- 100 Hz Dual-band GNSS receiver
- CAN Bus/ Ethernet output
- RS232 for NMEA output or connection to VBOX Test Suite
- User configurable digital output (Virtual Lap Beacon or Speed)
- IP67 rated enclosure: water + dustproof.
- ISO/IEC: 17025:2017 calibrated
- User-friendly OLED display
- ± 1.8 cm Brake distance accuracy (Trigger)
- <1 cm position accuracy with RTK
- Small (140 x 79 x 38 mm) & rugged
Is your test track lined with trees, featuring bridges or tunnels? Are you testing on public roads with obstacles obstructing direct satellite visibility?
VBOX 3iS, our speed sensor with inertial and wheel speed integration, significantly improves the accuracy of the speed and position data by combining wheel speed information from the vehicle’s CAN bus with GNSS and inertial data. In areas where there is no view of the sky at all, inertial sensors and wheel speeds can fill in the gaps for periods of up to five minutes. Additionally, the internal, high-grade IMU offers precise measurements of pitch, roll and yaw.

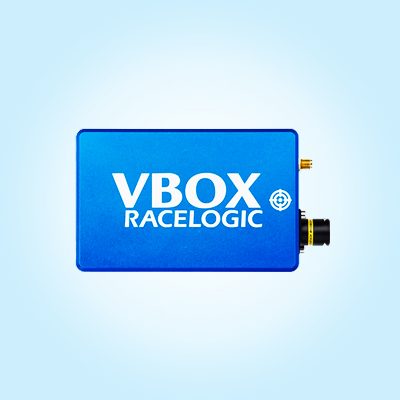

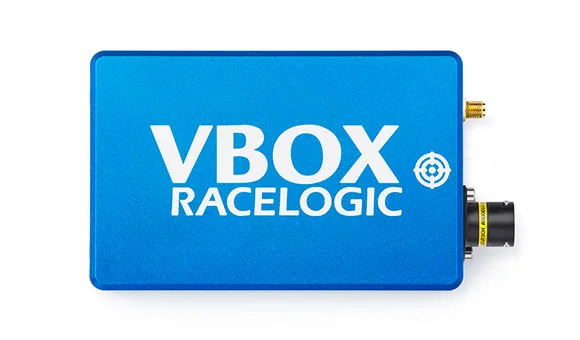

VBOX 3iS / 3iSDR
- 100 Hz GPS/GLONASS receiver
- Inertial & CAN bus wheel speed data integration
- Pitch and roll angles with IMU integration
- IP67 rated enclosure: water + dustproof.
- ISO/IEC: 17025:2017 calibrated
- ± 1.8 cm Brake distance accuracy (Trigger-activated)
- RS232/ CAN bus/ Ethernet
- 50 cm using DGNSS or ±1 cm position accuracy with RTK
- Motion Pack for driving robots & guided soft targets (GST) - 3iSDR only
Parameters
VBOX Speed Sensor measures the following parameters at 25 or 100 samples per second.
- Time
- Position
- Velocity
- Vertical Velocity
- Height
- Heading
- Longitudinal acceleration
- Lateral acceleration
- Trigger to zero distance
- Trigger time
- Trigger speed
- Radius of Turn
Add-ons and Accessories

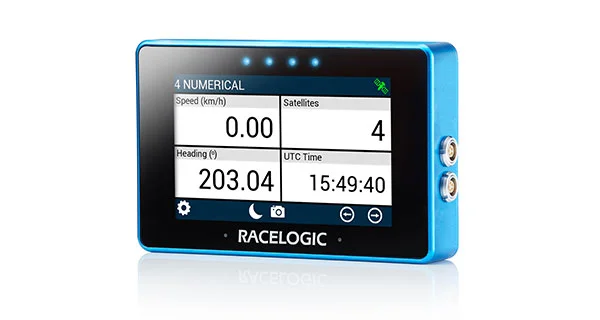

Multi-Function Touch Display
The MFD Touch is the perfect accessory to monitor one or more parameters during the test. Up to six GNSS/CAN-derived data parameters can be displayed simultaneously, and performance test results can be calculated and presented live from the vehicle.
Brake Pedal Trigger
The VBOX Brake Pedal Trigger (RLVBACS004) allows precise measurement of brake pedal application during braking. The exact time is captured and recorded by the VBOX at a high sampling rate.
Have Questions? Get in Touch
What is the VBOX 25 Hz Speed Sensor and what is it used for?
VBOX 25 Hz Speed Sensor is a compact GNSS-based sensor designed to provide high-frequency and highly accurate speed and position data. It is commonly used in automotive testing, braking analysis, and vehicle performance validation.
What does “25 Hz” mean in this sensor?
The 25 Hz update rate means the sensor provides 25 data measurements per second, enabling precise capture of rapid speed changes. This is especially useful for applications like acceleration, braking, and dynamic testing where high temporal resolution is critical.
How accurate is the VBOX 25 Hz Speed Sensor?
The sensor offers highly accurate speed measurement (typically ±0.1 km/h) and reliable positional data using GNSS technology. When combined with correction systems (SBAS/RTK), accuracy can be further enhanced.
Can the VBOX 25 Hz Speed Sensor work as a standalone device?
Yes, it can function as a standalone speed sensor with outputs via CAN, analog, or digital signals. It can also be integrated with VBOX data loggers for synchronized multi-channel data acquisition.
What are the key applications of the VBOX 25 Hz Speed Sensor?
Typical use cases include:
- Brake testing and stopping distance measurement
- Vehicle performance and acceleration testing
- Speed validation and calibration
- Integration with ECUs for real-time speed input
