VBOX Micro
Technical Specifications
VBOX Micro

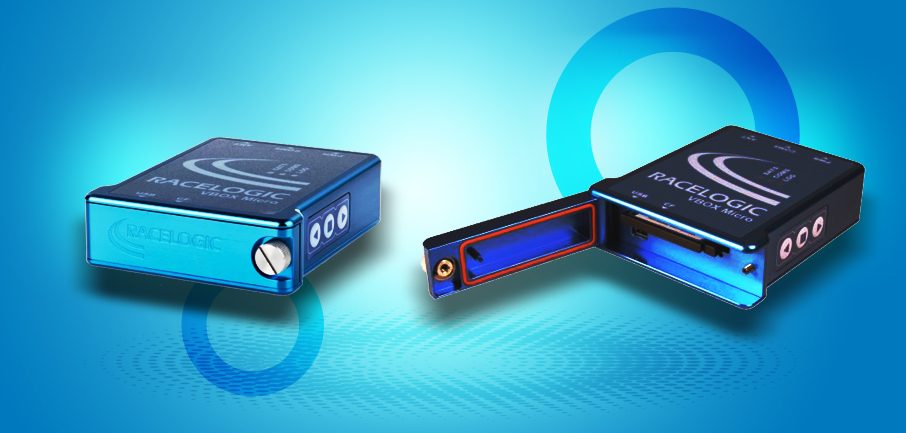

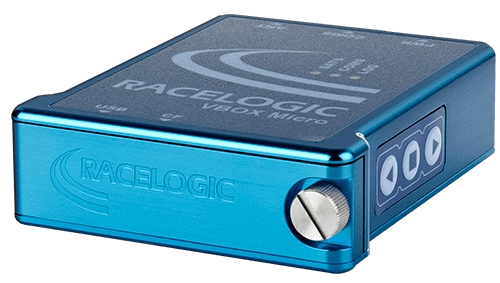

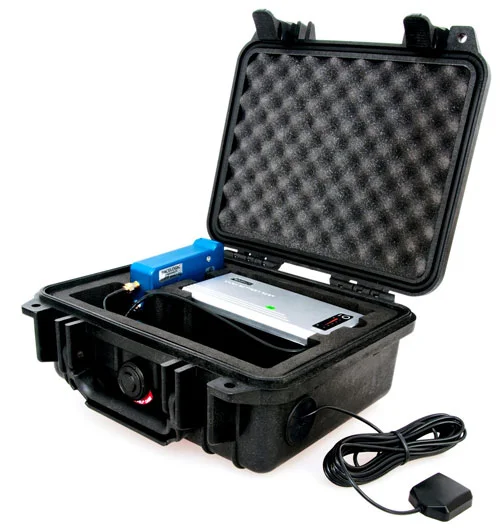

VBOX Micro is a compact GNSS-based data logger designed for accurate speed, position, and distance measurement in vehicle testing applications. It offers high-precision performance with reliable update rates, ensuring consistent and repeatable data results.
The system supports essential data logging functions such as acceleration, lap timing, and distance tracking, with easy data storage and transfer options. Its lightweight design, simple installation, and robust performance make VBOX Micro an ideal solution for automotive testing, motorsports, and real-world data analysis.
Key Features
- 10 Hz update rate for accurate speed and position measurement
- User-adjustable log rate from 1 Hz up to 10 Hz
- CAN Bus interface for logging vehicle data and connecting external modules
- IP66-rated waterproof and dustproof enclosure for harsh environments
- Compact and rugged design suitable for long-term data collection
- Logs key parameters such as speed, position, distance, acceleration, and heading
- Low power consumption allowing extended operation on battery
- Data logging to Compact Flash card for long-duration recording
- Compatible with VBOX Test Suite for advanced data analysis
- Suitable for durability testing, fuel economy testing, and real-world vehicle validation
Applications
Vehicle speed and performance testing
Motorsports and track day analysis
Acceleration and braking measurement
Distance and lap timing evaluation
Automotive research and development (R&D)
Real-world driving data collection
Entry-level GNSS data logging applications
Testing for automotive enthusiasts and professionals
|
Update rate
|
Speed accuracy
|
Position accuracy
|
Constellations
|
Antenna
|
Logging media
|
Input Voltage Range
|
Operating temperature
|
Weight
|
Size
|
|---|---|---|---|---|---|---|---|---|---|
Parameters
The VBOX Micro records the following parameters as standard:
- Time
- Position
- Speed
- Vertical Velocity
- Height
- Distance since reset
- Accumulated distance
- Heading
- Longitudinal acceleration
- Lateral acceleration
You can also record other parameters, either by connecting to:
- your vehicle's CAN bus, or
- a suitable external input module
Applications
The small form factor, ruggedness and flexible logging rates make the VBOX Micro ideal for durability testing, fuel economy testing, and real-world verification.
VBOX Micro allows connection to other manufacturer’s CAN units and vehicle CAN. Racelogic’s vehicle CAN database can be found here.
Low power consumption means VBOX Micro can run for days on a compact battery pack (not included).
Free Analysis Software
VBOX Test Suite
Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins that make it quick and easy to conduct tests.
- Over 25 application specific plugins
- Live and post-event data analysis
- Create your own custom tests
- Customisable layout
- Easily create charts, tables and reports
- Analyse data sets simultaneously
Add-ons and Accessories
Thermocouple Interface
The Thermocouple Interface allows you to log 8 K-type thermocouple inputs along with the normal channels of VBOX data.
Analogue Input Module
This 8-channel 16-bit voltage interface allows vehicle analogue output sensor data to be logged by the VBOX.
Inertial Measurement Unit
The VBOX IMU provides highly accurate measurements of pitch, roll, and yaw rate using three rate gyros, as well as x, y, z acceleration via three accelerometers.
Frequency Input Module
The VBOX Frequency & Pulse Counter Input Module enables frequency based signals in the range of 1 Hz to 20 kHz to be recorded.
Mini Input Module
The Mini Input Module allows data such as temperature, RPM, wheel speed, fuel flow, throttle angles and pedal forces to be easily measured along with the VBOX GPS data.
Have Questions? Get in Touch
What is VBOX Micro and where is it used?
VBOX Micro is a compact, rugged GNSS-based data logger designed for long-term vehicle and field data collection. It is widely used in durability testing, fuel economy studies, route analysis, and real-world vehicle validation.
What makes VBOX Micro suitable for harsh environments?
The device features an IP66-rated waterproof and dustproof enclosure, making it ideal for outdoor and harsh testing environments such as mining, off-road, and endurance testing.
What parameters can VBOX Micro measure and log?
It records key parameters such as speed, position, distance, acceleration (longitudinal & lateral), heading, and altitude. It can also log additional signals via CAN bus or external input modules.
What is the logging capability and data rate of VBOX Micro?
VBOX Micro offers a user-selectable logging rate from 1 Hz up to 10 Hz, allowing both high-speed event capture and long-term data recording. It stores data on a Compact Flash card, supporting extended logging durations (up to hundreds of hours depending on settings).
Can VBOX Micro integrate with vehicle systems and sensors?
Yes, it includes CAN bus connectivity, enabling logging of up to 16 external CAN channels from vehicle ECUs or other systems. It can also connect with Racelogic input modules for additional sensor data acquisition.
