G Meter Plus
G-Meter Plus
The g-meter+ was designed for carrying out statutory annual MOT brake performance testing, and is DVSA-approved by the GEA, including for data transfer with the MOT Testing Scheme (MTS).
In addition to use for cars and vans, it is suitable for brake performance testing on HGVs. It is also TÜV Rheinland certified as a brake-measuring instrument.
Product Description
Suitable for the MOT brake testing of all classes of vehicles (Class III, IV, V, VI & VII vehicles in accordance with the Motor (Tests) Regulations 1981, as amended) the g-meter+ is practical, reliable and straightforward to use. It is also suitable for testing HGVs in accordance with the Goods Vehicles (Plating and Testing) Regulations 1988, as amended.

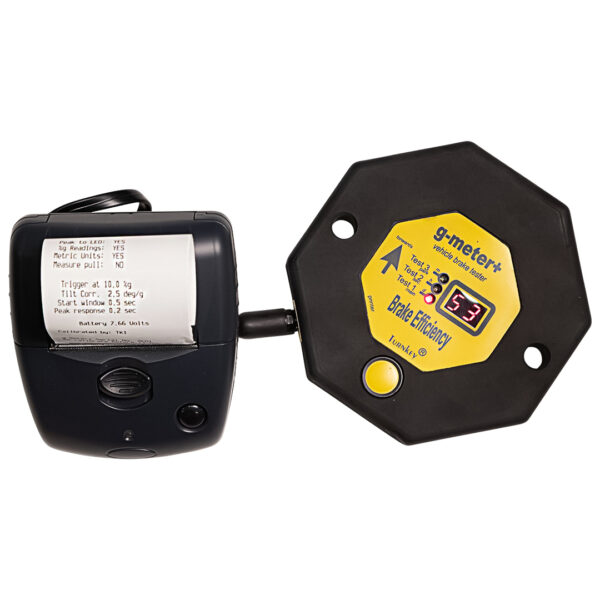

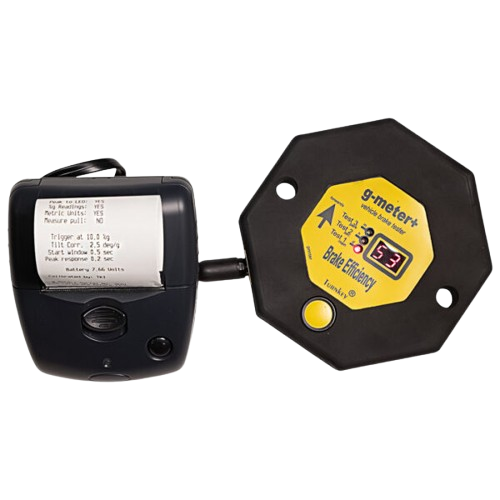

Small, lightweight and portable, the octagon-shaped tester measures just 122 mm across and is just 24 mm deep. It is compatible with the Turnkey AP1300 printer, which is also small and compact, and can be used to print instant results on the spot and away from a desk. With our g-meter PC software, you can also connect the g-meter+ to a computer to manage tests and settings.
Equipment Identification Number: EINCBD10863A1019134
How it Works
The g-meter+ uses the same technology as the standard G meter unit, it allows up to 3 tests to be stored in its memory and also allows for test receipts to be printed using an external printer accessory.
Have Questions? Get in Touch
What is the G-Meter+ and how is it different from a standard G-Meter?
G-Meter+ is an upgraded version of a standard G-Meter, offering enhanced accuracy, data logging, and additional braking analysis features. While a basic G-Meter measures acceleration, G-Meter+ provides more detailed insights into braking performance and vehicle dynamics.
What parameters can the G-Meter+ measure?
The device measures:
- Longitudinal acceleration and deceleration (g-force)
- Stopping distance and braking performance
- Peak and average deceleration values
- Time-based acceleration curves
These parameters are essential for vehicle safety testing and performance validation.
How does the G-Meter+ work?
G-Meter+ uses high-precision accelerometers combined with onboard processing to calculate real-time vehicle motion data. It can automatically detect braking events and generate test results without complex setup.
Where is the G-Meter+ typically used?
Common applications include:
- Automotive brake testing and validation
- Vehicle inspection and compliance checks
- Fleet safety testing
- Motorsport and performance analysis
What are the key advantages of using G-Meter+?
Key benefits include:
- Higher accuracy compared to basic G-Meters
- Integrated braking analysis features
- Portable and easy-to-install design
- Cost-effective solution for field testing
- Quick reporting for test and inspection purposes
